SAUTER, Sauter Mechanical force gauge | FA 20
Prod #FA 20

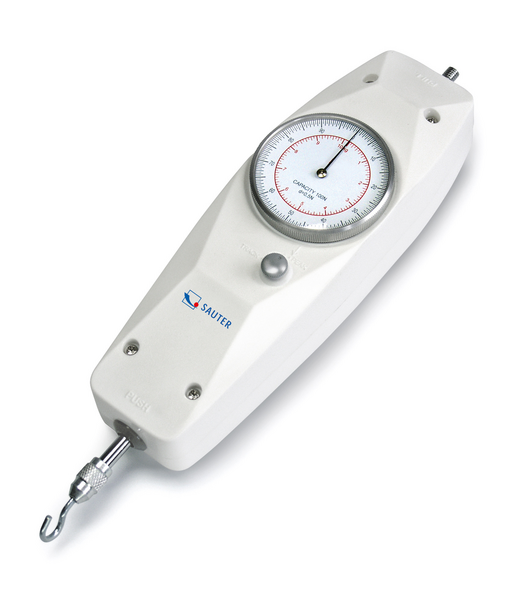

Mechanical force gauge for tensile and compressive force measurements with peak hold function
- Dual scale: shows Newton and kg
- Turnable display unit for an easy zero setting of the instrument
- Peak hold function by drag pointer
- Can be mounted on all manual test stands
- Zeroing by a short push of the switch
- Delivered in a robust carrying case
- Standard attachments as shown, extension rod: 90 mm, included with the delivery
Product Overview
TECHNICAL DATA
| Measuring range force [Max] (N) | 20 N |
| Readability force [d] (N) | 0,1 N |
| Tolerance (% of [Max]) | 1% |
| Peak function | |
| Material housing | plastic |
| Dimensions completely mounted (W×D×H) | 232×59×51 mm |
| Net weight approx. | 0,50 kg |
